Inline · Flange Output

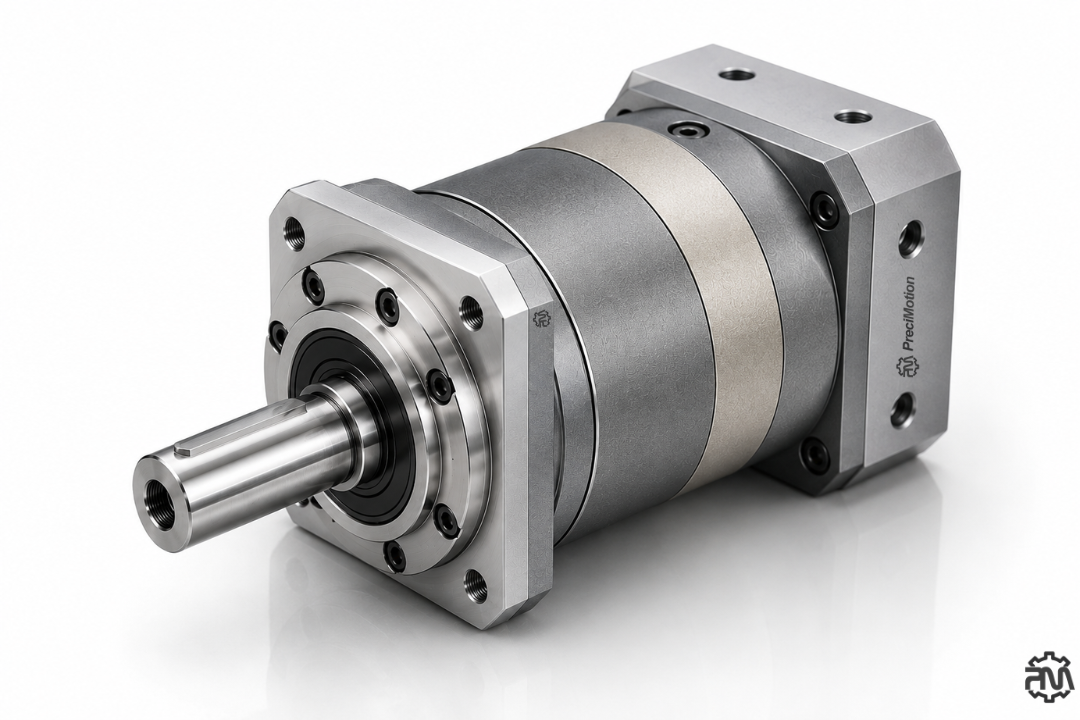

PKPLF Series

Servo Planetary Gearbox

High-precision flanged-output planetary gearbox — German-engineered gear grinding craft with a compact flange interface for direct machine and robot mounting.

Request quote All series

Output interface

Flange

Frame sizes

050–235

Precision gearing

ISO

Protection

IP65

Maintenance

Lifetime Lubricated

Overview

Flange-ready high precision.

PKPLF delivers PKPL-class precision grinding in a flanged-output package — ideal when you need a short, rigid connection to tables, robots, and automation modules.

Features

PKPLF at a glance

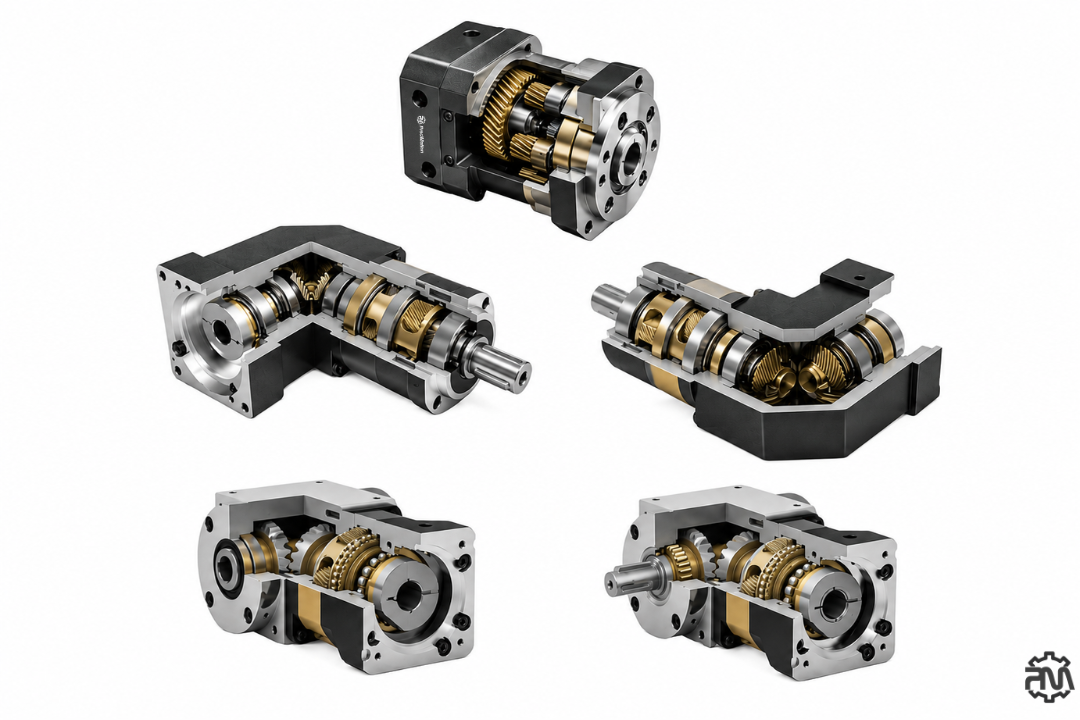

Precision standard <3 arc-min

PKPL-class precision grinding in a flanged package — low backlash and smooth continuous high-speed operation.

Adaptable motor connection

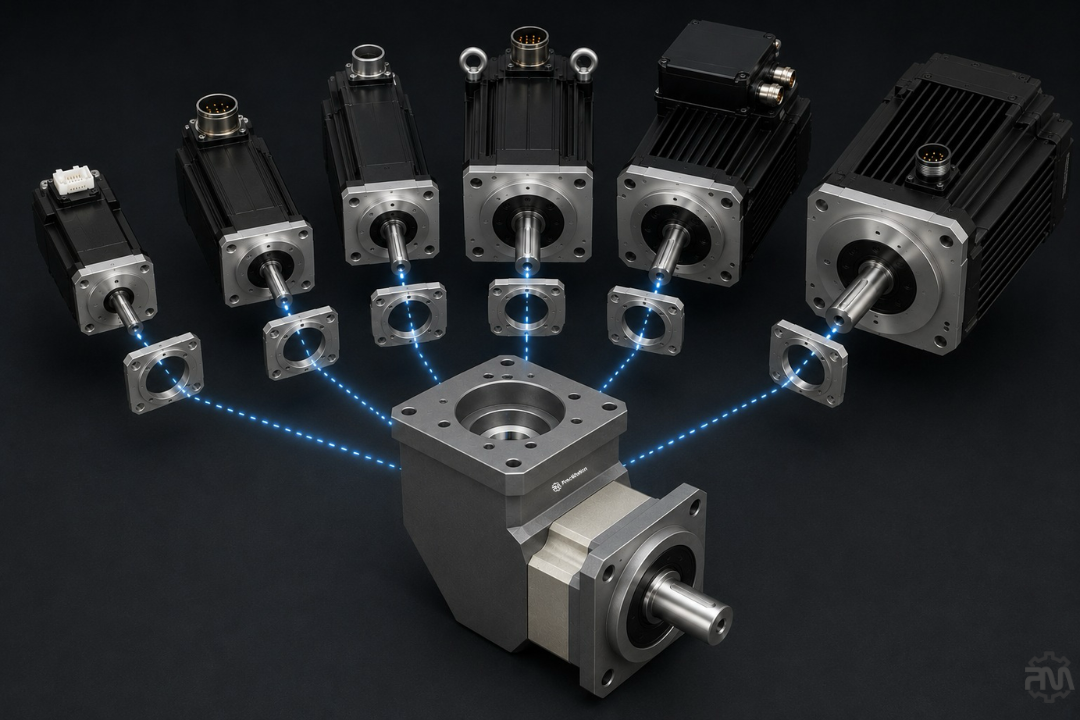

Integrated output flange plus input adaptors for servo motors worldwide — key or keyless options.

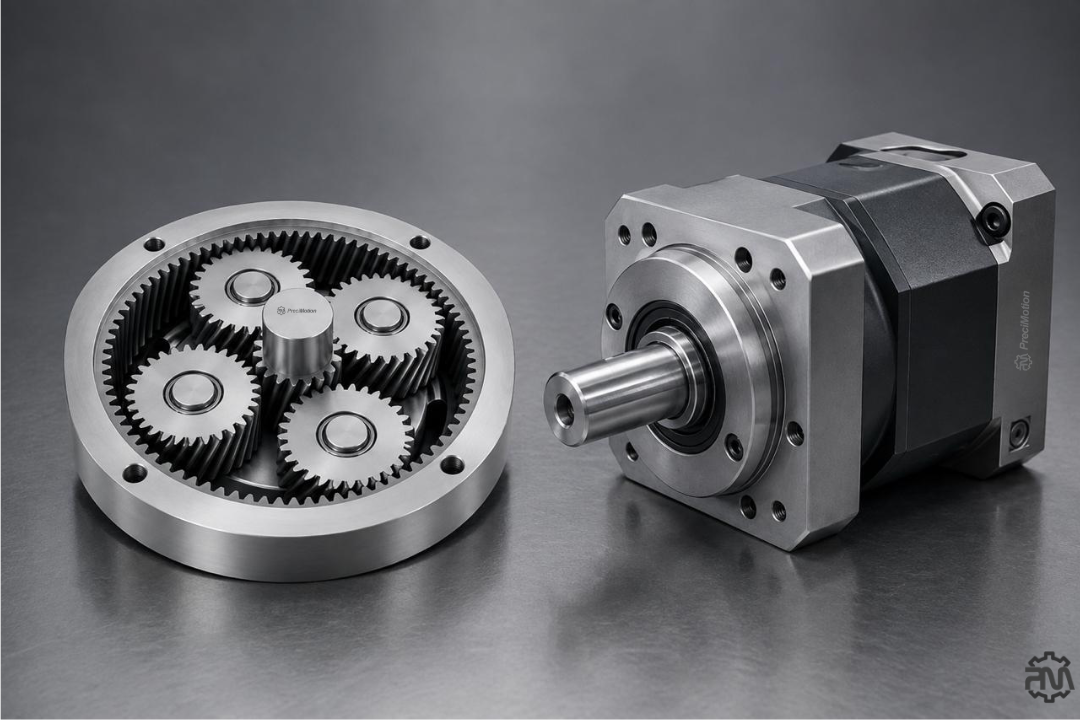

Low noise operation

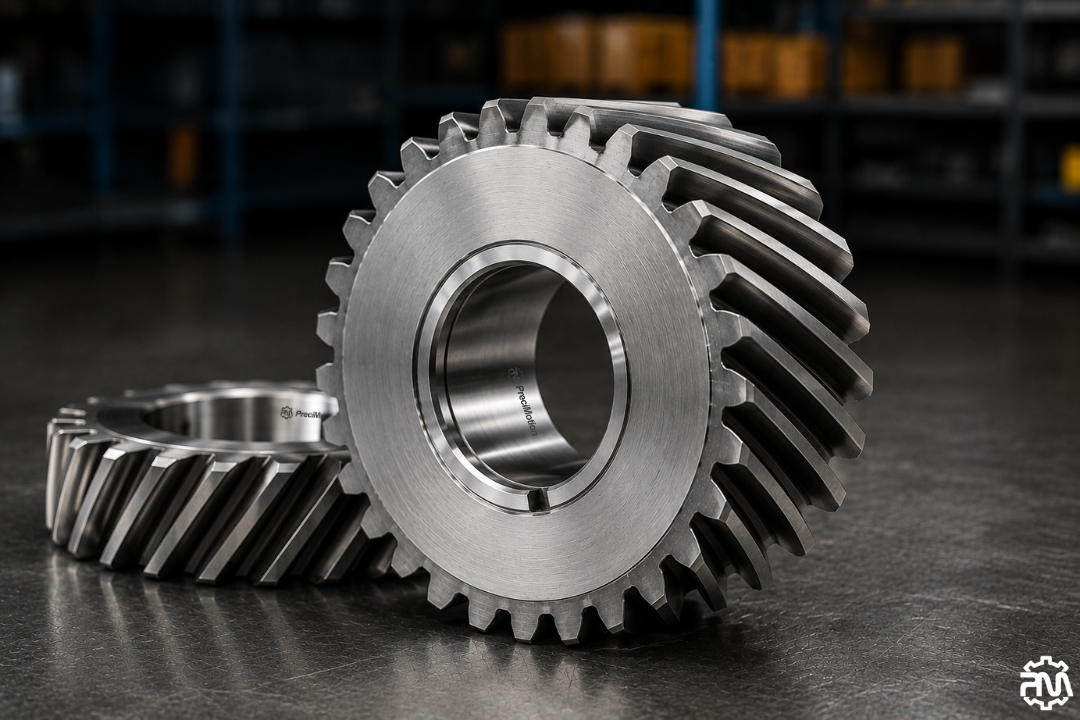

Helical planetary gearing with caged planet carriers for quiet, stiff continuous duty.

Robust · Lifetime Lubricated

Full needle roller bearings for torque density and stiffness. Synthetic grease sealing for long service intervals.

Specifications

Technical data.

Model		PKPLF050	PKPLF070	PKPLF090	PKPLF120	PKPLF160	PKPLF205	PKPLF235	Ratio	Stage
Rated Output Torque	Nm	20	46	125	210	450	650	1200	3	1
		21	52	145	300	550	1250	1800	4	1
		21	55	155	320	650	1200	2050	5	1
		20*	50*	145*	300*	610*	1000*	1850*	6	1
		19	50*	135	290*	540	1000	1750*	7	1
		18*	45	115	255	510*	1000*	1550	8	1
		14	42	105*	220*	440	910	1500*	9	1
		14	42	105	220	440	910	1500	10	1
		20	56	125	310	500	650	1200	12	2
		21	52	145	300	550	1250	1800	16	2
		21	55	145	300	650	1200	2050	20	2
		21	55	155	320	650	1200	2050	25	2
		–	52	145	305	550*	1250*	1800*	32	2
		21	55*	155	320*	650	1200	2050	35	2
		–	55	155	320	550*	1200*	2050*	40	2
		21	55*	155	320*	650	1200	2050	45	2
		21	55	155	320	650	1200	2050	50	2
		18/63	45	115	255	510/63	1000/63	1550	64	2
		21	52	155	320	650	1200	2050	80	3
		21	52	155	320	650	1200	2050	100	3
		21	52	155	320	650	1200	2050	125	3
		21/140	52	155	320	650	1200/140	2050/140	160	3
		21/180	52	155	320	650	1200/180	2050/180	200	3
		21/252	52	155	320	650/224	1200/252	2050/252	256	3
		21/315	52	155	320	650/280	1200/315	2050/315	320	3
		18/441	45	115	255	510/504	1000/441	1550/504	512	3
Backlash	arcmin	—	≤3	≤3	≤3	≤3	≤3	≤3	High Precision	1
		≤6	≤6	≤6	≤6	≤6	≤6	≤6	Standard Precision	1
		—	≤5	≤5	≤5	≤5	≤5	≤5	High Precision	2
		≤8	≤8	≤8	≤8	≤8	≤8	≤8	Standard Precision	2
		—	≤7	≤7	≤7	≤7	≤7	≤7	High Precision	3
		≤12	≤10	≤10	≤10	≤10	≤10	≤10	Standard Precision	3

Specification	Unit	PKPLF050	PKPLF070	PKPLF090	PKPLF120	PKPLF160	PKPLF205	PKPLF235
Max Input Speed	min⁻¹ (rpm)	8000	6000	6000	6000	6000	4000	4000
Rated Input Speed	min⁻¹ (rpm)	4000	3000	3000	3000	3000	3000	2000

Values marked with * are less commonly used speed ratios.
Where two values appear (e.g. 21/140), they correspond to the actual speed ratio groups in the catalogue.
Maximum acceleration torque is equal to 180% of the rated torque.
